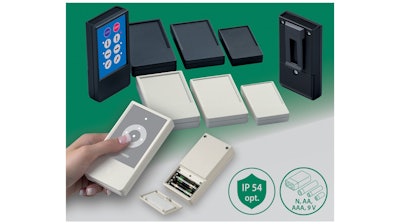

OKW’s DATEC-POCKET-BOX can now accommodate N, AA, AAA and 9 V cells for a range of handheld electronics.
These pocket-sized plastic enclosures are ideal for measurement and control, remote controls, pulse generation for ultrasound and infrared, sensors, optoelectronics, mobile data recording and wireless communications.
Ergonomic DATEC-POCKET-BOX’s thin profile makes it comfortable to hold, with easily-machinable flat surfaces for adding interfaces. The operating area is recessed to protect a membrane keypad or product label. The front face is clear polished (sizes M, L) for efficient infrared signals. Inside, there are internal fastening pillars for PCBs
DATEC-POCKET-BOX can be specified in either ABS or infrared-permeable PMMA (both UL 94 HB), and with or without IP 54 ingress protection as standard. There are three sizes: S (5.98" x 3.27" x 1.32"), M (7.68" x 3.98" x 1.73") and L (9.92" x 4.76" x 1.97"). The standard colors are off-white (RAL 9002) and black (RAL 9005).
Accessories include:
- Belt/pocket clips.
- Battery clips.
- Battery spacer.
- Plug-in contact (9 V).
- Ring eyelet.
- Self-tapping screws for mounting PCBs.
OKW can supply DATEC-POCKET-BOX fully customized. Services include machining, lacquering, printing, laser marking, decor foils, special materials, RFI/EMI shielding and installation/assembly of accessories.
For more information, view the OKW website: okwenclosures.com.
