Marsh Bellofram Multifunction Meter

Marsh Bellofram introduces the VCFP96M Multifunction Meter, a complete single-phase and three-phase digital metering system, suitable for low-, medium-, and high-voltage control panels, gensets, load banks, building management systems, and power management systems.

Mnet 199880 Marsh Bellofram Featured

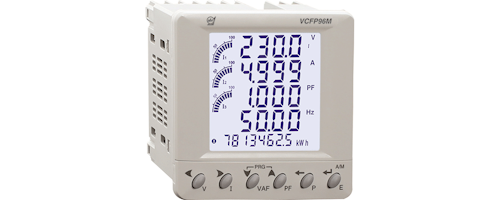

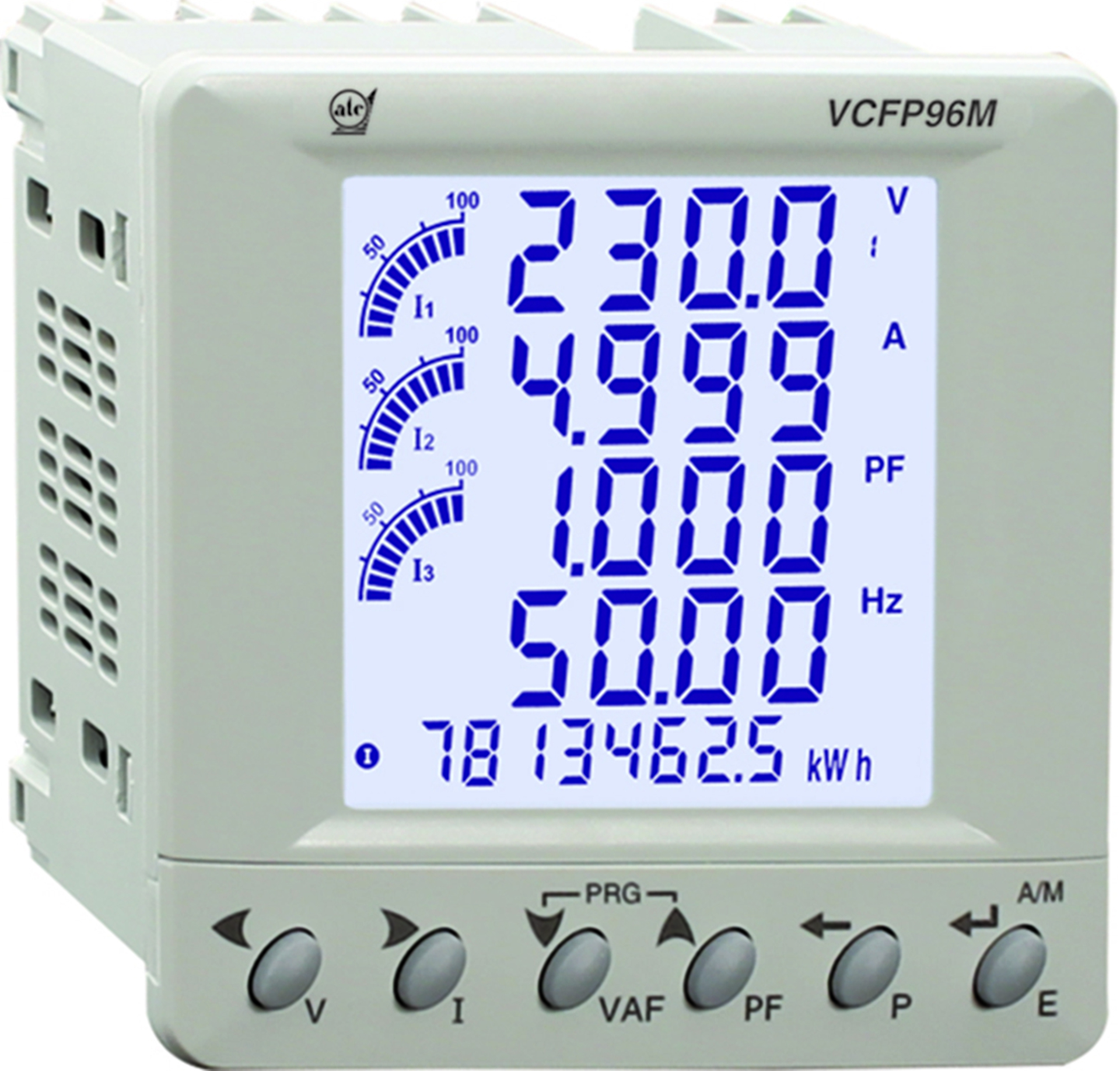

Marsh Bellofram (Newell, WV) introduces the VCFP96M Multifunction Meter, a complete single-phase and three-phase digital metering system, suitable for low-, medium-, and high-voltage control panels, gensets, load banks, building management systems, and power management systems. It features a display that is easy to read with four rows, LCD backlight, and a convenient bar graph for current representation.

The VCFP96M can be used on single-phase, three-phase three wire, as well as three-phase four wire balanced or unbalanced systems. The six easy-to-access front control keys are used for scrolling up or down through the parameters being measured and displayed, including voltage, current, power factor, power (active, reactive, apparent), energy, and frequency. The Multifunction Meter allows facility managers to easily measure and monitor power quality and demand, which is especially helpful when determining where electrical inefficiencies exist.
