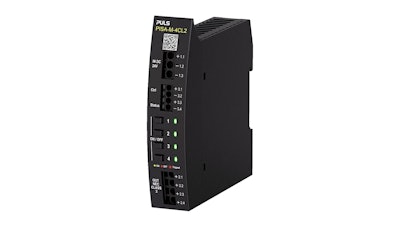

Puls L.P. PISA-M 4-Channel Electronic Circuit Breakers.
Puls L.P.
PULS has expanded its PISA Series of electronic circuit breakers (ECBs) with six new PISA-M 4-channel models, offering a compact and efficient solution for creating multiple lower-power circuits from a single power supply.
The PISA-M units are designed to simplify power distribution in automation and control systems while protecting system components, wiring, and power supplies from overloads and short circuits.
Features & Benefits:
- Compact Size: Ultra-slim 22.5 mm width; smallest 4-channel ECB on the market
- Dual Voltage Compatibility: Auto-detects 12 V or 24 V input systems without configuration
- Overload Protection: Protects system components, wiring, and power supply
- Quick Installation: Push-in connectors for tool-free installation
- User-Friendly Operation: Two-color LEDs and dedicated on/off/reset buttons per channel
- Current Adjustment Options: Adjustable (1–8 A) or fixed output (2 A, 4 A, 6 A, 8 A)
- NEC Class 2 Options: Multiple protected Class 2 outputs from a single power supply
UL certified and optimized for modern automation environments requiring compact, safe, and scalable power distribution. Ideal for systems where space, safety, and flexibility are priorities.
Model Variants:
- PISA-M-4ADJ: 4x adjustable outputs (1–8 A, max. 20 A)
- PISA-M-4CL2: 4x NEC Class 2 outputs, 15 A total
- PISA-M-402: 4x 2 A outputs (Class 2)
- PISA-M-404: 4x 4 A outputs
- PISA-M-406: 4x 6 A outputs (max. 20 A)
- PISA-M-408: 4x 8 A outputs (max. 20 A)
For full technical details and purchasing options, visit the PULS PISA-M product page.
