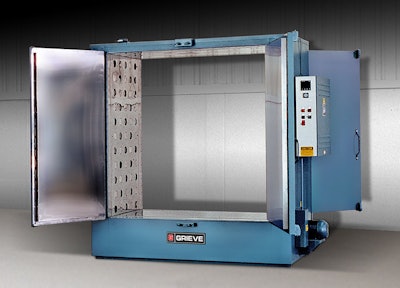

No. 896 is a 350°F (177°C), shelf oven from Grieve, currently used for storing bottles of powder in a free-standing rack at the customer’s facility. Workspace dimensions of this oven measure 68"W x 30” D x 66” H. 18 KW are installed in Nichrome wire heating elements, while a 1000 CFM, 1-HP recirculating blower provides horizontal airflow to the workload.
This Grieve shelf oven has four inches insulated walls and an aluminized steel exterior. Features include Type 430 stainless steel interior and double doors in the front and rear. The floor of the workspace is reinforced for 5,000 lbs. loading at hardpoints in corners to support customer’s rack.
Controls on the No. 896 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and a recirculating blower airflow safety switch.
