Fixtureworks Line Of Pneumatic Flex Clamping Locators for Wide Range of Workholding

Both versions are zero-point systems, which allows quick precise clamping.

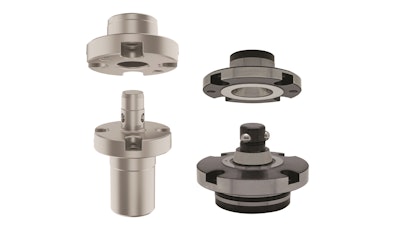

Fixtureworks lineup of flex locators and receivers AMWF-L (left) and AMWF-W for fastening in a wide range of tooling, fixturing and assembly operations.
Fixtureworks lineup of flex locators and receivers AMWF-L (left) and AMWF-W for fastening in a wide range of tooling, fixturing and assembly operations.
Fixtureworks

Fixtureworks (Fraser, MI) announced two pneumatic clamping locators AMWF-W and AMWF-L for fastening in a wide range of tooling, fixturing and assembly operations while reducing set up time for machine changeover.

Both versions are zero-point systems, which allows quick precise clamping.

Heavy-duty AMWF-W variety of pneumatic air flex clamping locators:

  • Up to 6300 N clamping force
  • High precision
  • Straight or tapered pneumatic pin-type
  • Paired with receivers for quick change of fixture or tools within 0.003 mm (3 microns) repeatability
  • Air assistance eliminates set up time in frequent changeover of fixtures, plates and tooling on automation machinery
  • Available in diameters of 70 to 85 mm

AMWF-W Ball locking pneumatic flex locators:

  • Used in conjunction with AMWF-BU series flex locator receptacles (receivers) for locating and fastening
  • Bushing/receiver, either tapered, straight or diamond-type is centered and clamped when three balls are pushed out for high locating repeatability
  • When air pressure is applied, balls retract into pin
  • Locating repeatability - 0.003 mm
  • Available in diameters of 60 to 75 mm

AMWF-L ball locking pneumatic flex locator pins:

  • Compact in size
  • Used for lighter duty applications
  • Clamping force to 350 N
  • Used for locating and fastening in wide range of tooling, fixturing and assembly operations primarily when plates are mounted horizontally
  • Bushing is centered and clamped when three balls are pushed out for high locating repeatability of 0.01 mm (10 microns)
  • Available in diameters from 40 to 61 mm

AMWF-BU flex locator receptacles (receivers):

  • Used with AMWF-L series ball locking pneumatic flex locator pins for locating and fastening in wide range of tooling, fixturing and assembly operations
  • When air pressure is applied, balls retract into pin, allowing pin to be released from receptacle
  • Available in diameters of 36 to 44 mm

fixtureworks.com
