Heavy-Duty Joystick Platform Simplifies Customization Process

Supporting rugged off-highway vehicles, JOYSCAPE joysticks ensure intuitive and safe operation under the toughest conditions.

Rafi Joyscape Image
RAFI
Screen Shot 2019 05 22 At 11 11 07 Am
RAFI

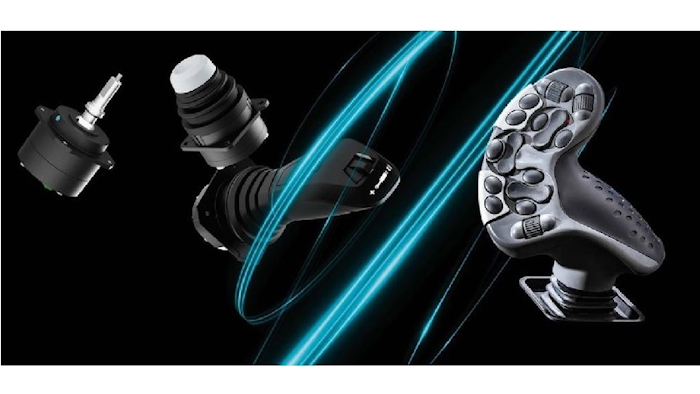

RAFI (Lynnwood, WA) has enhanced its JOYSCAPE platform for heavy-duty off-road and special-purpose vehicles and equipment found in agriculture, construction, mining and more. The JOYSCAPE platform features a robust, compact standard design base that can easily be customized with harsh environment control components to meet most any application requirements.

RAFI integrates buttons, rocker switches, thumb joysticks and rotary encoders into JOYSCAPE joysticks for a tailored control solution. RAFI can also employ wear-free noncontact electronic 3D Hall sensors for sophisticated motion detection and advanced safety considerations. JOYSCAPE joysticks also have options for CAN/CANopen, analog or USB interfaces.

Optional extras are also available such as illuminated handles for work at night, capacitive hand detection to avoid operating errors and easy-clean folding bellows for hygienically sensitive areas.

Built to sustain 5 million operating cycles, the heavy-duty JOYSCAPE joystick achieves long operation lifetime, even in the most demanding environments. The heavy-duty joysticks are rated to operation temperatures between -40°C and +85°C. Offering superior shock resistance, the joystick has 110 Nm impact strength in X and Y direction. It handles pressure up to 1000 N and tensile loads up to 500 N in Z direction.

The ferromagnetic, high-alloy steel housing effectively shields the sensor system for added ruggedness. The sensors are designed redundantly for superior reliability and safety.

Due to its high center of rotation and large 20° tilt angle, the joystick only needs a small, 65 mm wide mounting hole.

rafi-group.com
