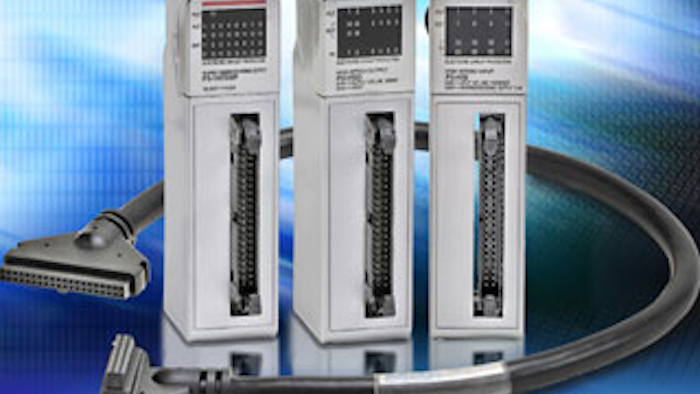

[[{"type":"media","view_mode":"media_original","fid":"157043","attributes":{"alt":"AutomationDirect","class":"media-image","height":"232","style":"float: right; margin-left: 5px; margin-right: 5px; border: 1px solid black;","title":"AutomationDirect","typeof":"foaf:Image","width":"320"}}]]AutomationDirect’s (Cumming, GA) Productivity3000 programmable automation controller line includes three new modules.
- The P3-HSO high-speed output module ($349) supports Pulse/Direction, Up/Down, and Quadrature pulse outputs on each of two independent output channels. It features six general purpose high-speed inputs and four general purpose outputs.
- The P3-HSI high-speed input module ($329) has differential and single ended inputs. This module accepts Pulse/Direction and Quadrature signals on each of the two independent input channels. It is equipped with four fault status LEDs, eight input LEDs, and four output status LEDs.
- The P3-16TD3P DC output module ($151) is a sinking/sourcing protected output module that provides 16 12-24 VDC sinking or sourcing outputs with four internally connected commons. LED indicators signify missing external 24 VDC, open load, over temperature, and over load current conditions.
See the full Productivity3000 line at www.automationdirect.com/productivity3000.
