Machinery Health Monitoring

The 786-500-D2 accelerometer carries CSA approvals for Class I Div 2/Zone 2 areas and has a high 500 mV/g output sensitivity and a broadband frequency response for multi-use applications.

title
title

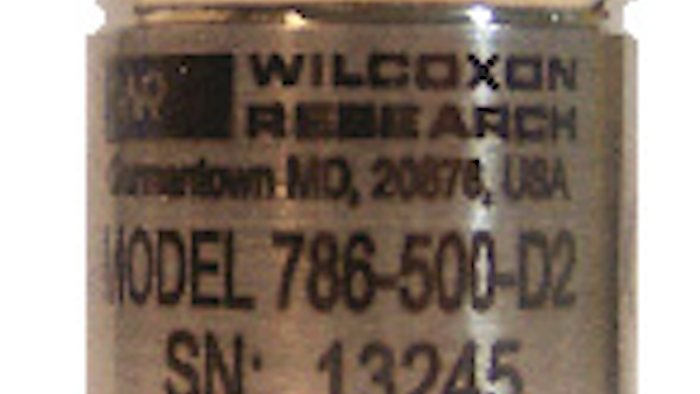

[[{"type":"media","view_mode":"media_original","fid":"157187","attributes":{"alt":"Meggitt ","class":"media-image","height":"320","style":"float: right; margin-left: 5px; margin-right: 5px;","title":"Meggitt ","typeof":"foaf:Image","width":"147"}}]]Meggitt (Germantown, MD) has introduced a high output accelerometer for machinery health monitoring. The 786-500-D2 accelerometer carries CSA approvals for Class I Div 2/Zone 2 areas and has a high 500 mV/g output sensitivity and a broadband frequency response for multi-use applications, according to the company. The Wilcoxon Research model 786-500-D2 accelerometer houses a 500 mV/g sensing element with a tight 5 percent sensitivity tolerance coupled with a ± 3 dB frequency response range that covers 0.2 to 14,000 Hertz. As a multi purpose sensor with a full scale acceleration range of 10 g and broadband noise floor of 250 μg, the 786-500- D2 is ideal for applications where both ends of the machine spectrum need to be monitored simultaneously.

For complete specifications, visit http://www.wilcoxon.com.
