New CNC Wire EDM

This machine features the latest “Microsparking Technology,” the MST-II function that provides exceptional part finishes, says the company.

title
title

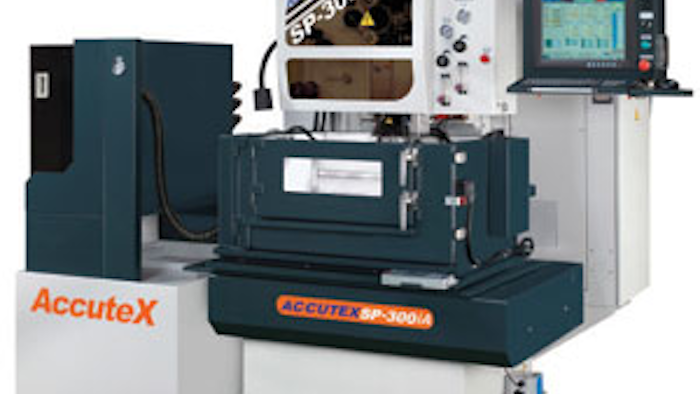

[[{"type":"media","view_mode":"media_original","fid":"157535","attributes":{"alt":"New CNC Wire EDM","class":"media-image","height":"243","style":"float: right;","title":"New CNC Wire EDM","typeof":"foaf:Image","width":"300"}}]]AccuteX EDM (Mason, OH), a Division of Absolute Machine Tools, Inc. has introduced its new “SP-300iA” 5-Axis CNC Wire EDM. This machine features the latest “Microsparking Technology,” the MST-II function that provides exceptional part finishes, says the company. This machine is built for rigidity with a Meehanite cast honeycomb base, highly-ribbed column that is mounted with oversized UVZ axis, and reinforced lower arm for added stiffness. All castings are stabilized and subjected to rigorous testing for maximum strength, high precision, and durability. The X, Y, Z working range is 13.8- x 9.8- x 8.7-inches. U and V axes are both 3.15 inches. The axes are driven by means of closed-loop AC servo motors with 0.000004 inch resolution and controlled by a linear glass scale feedback system.

Learn more at www.accutex.com.
