Walk-In Oven

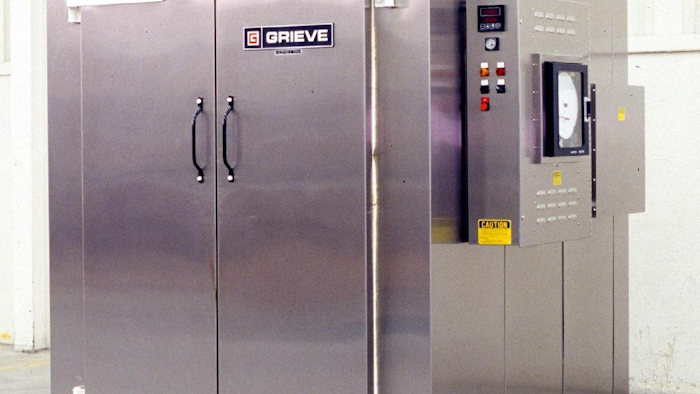

No. 951 is a 650 degree F, electrically-heated, walk-in oven,  ideal for preheating large steel molds at a customer’s facility.

title
title

[[{"type":"media","view_mode":"media_original","fid":"118968","attributes":{"alt":"Walk-In Oven","class":"media-image","height":"299","style":"float: right; margin-left: 5px; margin-right: 5px; border: 1px solid black;","title":"Walk-In Oven","typeof":"foaf:Image","width":"320"}}]]No. 951 is a 650 degree F, electrically-heated, walk-in oven from Grieve (Round Lake, IL) and is ideal for preheating large steel molds at a customer’s facility. Workspace dimensions of this oven measure 72 x 42 x 72 inches. 60KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 4200 CFM, 3-HP recirculating blower provides a combination airflow to the workload. This walk-in oven features 5-inch insulated walls, a top-mounted heat chamber, aluminized interior and exterior, plus a free-standing oven rack with two 6000-pound capacity shelves for the workpieces. Controls on No. 951 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, and recirculating blower airflow safety switch.

Check out www.grievecorp.com to see more.
