Triaxial Accelerometers

With a compact, lightweight footprint weighing five grams, the model 65 series allows a technician to make triaxial acceleration and vibration measurements on lightweight structures and objects.

title
title

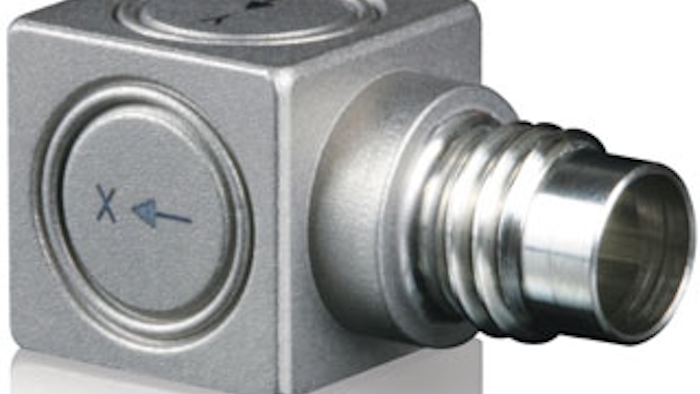

[[{"type":"media","view_mode":"media_original","fid":"157750","attributes":{"alt":"Triaxial Accelerometers","class":"media-image","height":"232","style":"float: right; margin-left: 5px; margin-right: 5px;","title":"Triaxial Accelerometers","typeof":"foaf:Image","width":"320"}}]]Meggitt Sensing Systems (San Juan Capistrano, CA), a Meggitt group division, has announced the successful application of its Endevco® model 65 triaxial ISOTRON® (IEPE-type) accelerometer series to support the rigorous demands of aerospace reliability testing. Featuring sensitivities of 10 mV/g and 100 mV/g, with ±500 g and ±50 g measurement ranges, respectively, and with excellent amplitude and phase frequency response, the Endevco® model 65 series incorporates Meggitt’s proprietary piezoelectric sensing elements for high-performance and stability, housed within a 10mm welded titanium cube with interface via a robust 4-pin Microtech connector. With a compact, lightweight footprint weighing five grams, the model 65 series allows a technician to make triaxial acceleration and vibration measurements on lightweight structures and objects.

For more information, visit www.meggittsensingsystems.com.
