Disc Magnet Step Motor

The P532 series motor has a diameter of 52 mm, length up to 55 mm, and rated torque of 0.2 Nm (boosted up to 0.5 Nm).

title
title

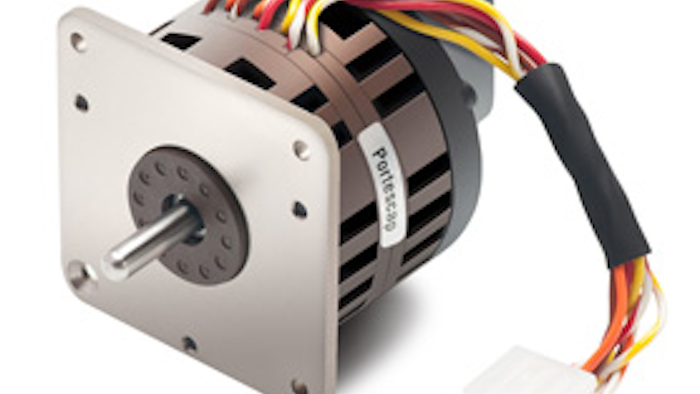

Portescap (West Chester, PA) has introduced the P532 series disc magnet step motor with encoder. This integrated solution delivers a best-in-class power rate and acceleration to outperform standard Brushless DC motors in a wide range of applications where closed loop performance is needed. The P532 series motor has a diameter of 52 mm, length up to 55 mm, and rated torque of 0.2 Nm (boosted up to 0.5 Nm). This allows the P532 to deliver fantastic dynamic performance such as acceleration up to 400K rad/sec2. Such performances are perfectly suited for applications where rapid changes in rotation are required (+/- 3,000 RPM in a few ms). Application examples include electronic yarn guide, medical XY tables, and robotics.

See more at www.Portescap.com.
