Charles Ross & Son Company

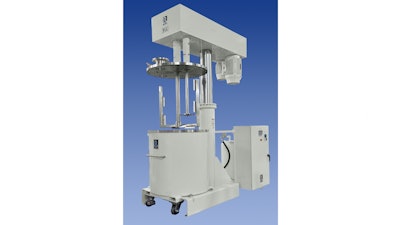

Charles Ross & Son Company (Hauppauge, NY) announced the ROSS Dual Shaft Mixers, a system engineered for accurate processing of high-performance formulations across a range of rheologies, solids loading, operating temperatures and pressures.
Features:
- Two-wing anchor agitator driven by 20 HP TEFC high efficiency, inverter duty motor
- High-speed disperser powered by 60 HP TEFC high efficiency, inverter duty motor
- Open disc blade of disperser, which travels at roughly 5,000 feet per minute, is designed to induce vigorous turbulent flow
- Anchor that feeds product towards high speed disperser blade and ensures constant turnover
- Air/oil hydraulic lift that allows for use of multiple mix cans which are constructed of stainless steel type 304 and include heating/cooling jacket on sidewalls and bottom
- 3" manually operated stainless steel flush bottom ball valve with tri-clamp connection
- Casters
- Produces air-free products with highly repeatable density, viscosity, composition and dispersion quality
- NEMA 12 control panel supplied with 7" color touch screen for user friendly operation, providing independent agitator speed controls, load display, cycle timer and other functions
- NEMA 12 limit switches to prevent operation when mix can is removed or agitators are not in mixing position
